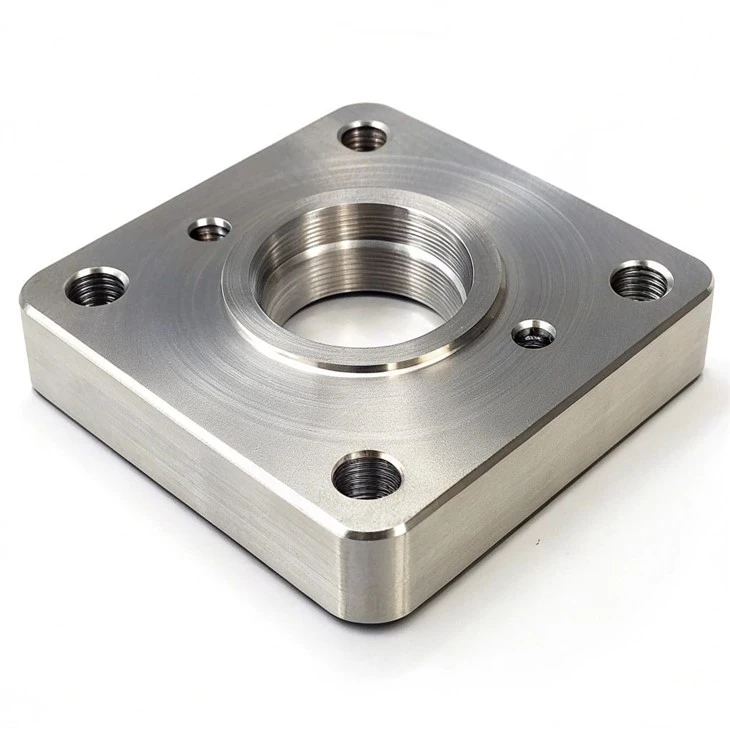

CNC Machined Precision Stainless Flange Plate
We provide fully customized OEM machining services based on customer 2D/3D drawings, samples, or technical specifications. Each flange plate can be manufactured according to international standards including ASME, DIN, JIS, GB, or fully customized geometries.
|
Item |
Details |
|
Manufacturing Process |
Solid bar stock machining / forged blank machining |
|
Service Type |
OEM & custom manufacturing |
|
Drawing Formats |
STEP, IGES, DWG, DXF, PDF |
|
Standards |
ASME, DIN, JIS, GB, Custom |
|
Quality System |
ISO 9001 / IATF 16949 |
Why Choose Machined Stainless Flange Plates Instead of Cast Parts?
Compared with investment casting or sand casting solutions, fully machined stainless flange plates offer significant advantages for critical sealing and pressure applications:
Zero Casting Defects
Machined directly from solid material eliminates internal porosity, shrinkage defects, and sand contamination, ensuring excellent structural integrity.
Superior Material Consistency
Solid stainless steel bar and forged blanks provide a uniform grain structure, improving fatigue resistance during repeated pressure cycles and temperature changes.
High Precision Sealing Performance
Advanced CNC machining ensures sealing face flatness up to ±0.01 mm, supporting reliable connections in high-pressure, vacuum, and high-purity systems.
Excellent Dimensional Repeatability
CNC-controlled production provides consistent bolt hole positioning, thread accuracy, and overall dimensions from prototype quantities to mass production.
Material Options
We support a wide range of stainless steel materials for different industrial environments:
|
Material Grade |
Typical Applications |
|
304 / 304L |
Food processing, chemical pipelines, general industrial systems |
|
316 / 316L |
Marine equipment, corrosive fluid systems |
|
321 / 347 |
High-temperature exhaust and heat exchanger applications |
|
310S |
Extreme temperature environments |
|
2205 Duplex |
High chloride and corrosion-resistant applications |
|
254SMO |
Severe corrosion and chemical processing |
All raw materials are supplied with Mill Test Reports (MTR) and verified through optical emission spectrometry to ensure chemical composition compliance.
CNC Machining Capability
Our precision machining workshop is equipped for complex flange plate manufacturing, including turning, milling, drilling, tapping, boring, and surface finishing processes.
|
Parameter |
Capability |
|
Maximum Machining Diameter |
Up to 600 mm |
|
Dimensional Tolerance |
±0.01 mm for critical features |
|
Surface Roughness |
Ra 1.6 μm standard / Ra 0.8 μm optional |
|
Thread Standards |
UNC, UNF, BSP, NPT, Metric, Custom |
|
Face Types |
RF, RTJ, M/F, T/G |
Every CNC Machined Precision Stainless Flange Plate is produced through controlled machining processes with optimized tooling and inspection procedures to achieve stable quality for industrial applications.
Manufacturing Process
Our complete production workflow includes:
- Engineering drawing review and manufacturability evaluation
- DFM analysis for machining optimization and cost reduction
- CNC programming and machining simulation
- Precision turning, milling, drilling, and finishing
- Deburring and surface treatment
- CMM dimensional inspection and thread verification
- Protective packaging for international shipment
Surface Treatment Options
|
Treatment |
Benefits |
|
Passivation |
Improves corrosion resistance by restoring chromium oxide layer |
|
Electropolishing |
Provides smooth Ra 0.4 μm surface for pharmaceutical and semiconductor applications |
|
Glass Bead Blasting |
Creates uniform matte surface finish |
|
Precision Deburring |
Removes sharp edges and improves assembly safety |
Quality Inspection & Applications
To ensure reliability, all products undergo dimensional inspection, surface roughness testing, thread checking, and material verification. Inspection reports, material certificates, and special testing such as helium leak testing or liquid penetrant inspection are available according to customer requirements.
Typical applications include:
- Food and pharmaceutical piping systems
- Chemical processing equipment
- Marine exhaust and fluid systems
- Semiconductor high-purity gas equipment
- Hydraulic manifolds and pressure systems
- Heat exchanger and power generation equipment
FAQ
|
Q1: |
What information is required for quotation? |
|
A1: |
Please provide drawings, material requirements, surface finish specifications, and order quantity. |
|
Q2: |
Do you accept customer-supplied materials? |
|
A2: |
Yes, we can machine customer-provided forged blanks or stainless steel bar stock. |
|
Q3: |
Can you provide inspection documents? |
|
A3: |
Yes. Dimensional reports, material certificates, and customized inspection reports are available. |
