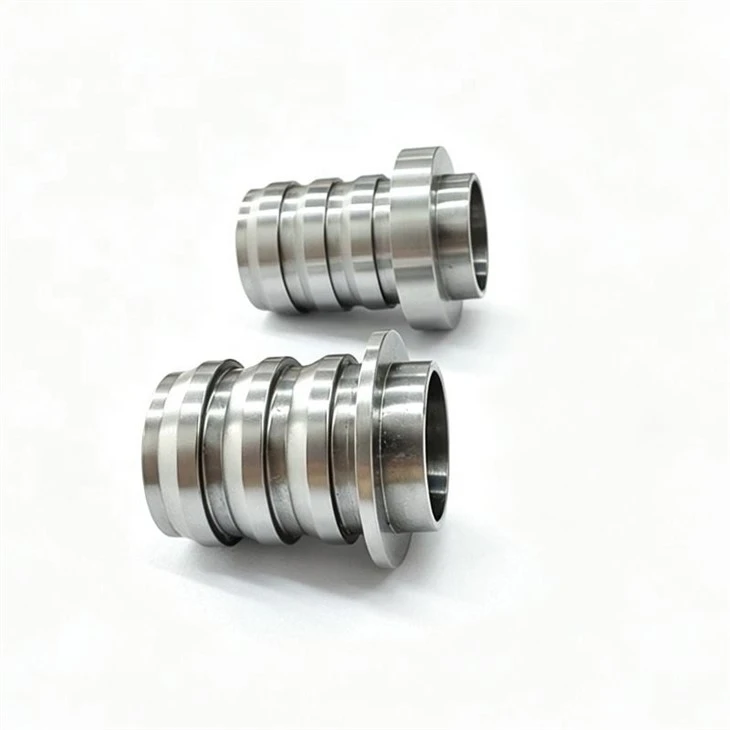

Data Center Liquid Cooling Fitting Machining
What Makes These Fittings Different?
Liquid cooling fittings are not ordinary CNC parts. A G1/4 thread adapter operating at 4 bar behind a $40,000 GPU cannot tolerate a 0.05 mm groove-radius deviation. We machine every O-ring boss, every tapered thread flank, and every quick-disconnect sealing cone with that reality in mind. Our entire workflow, from material selection to final pressure validation, is built around the specific failure modes that destroy server hardware.
From Sample to Production - No Drawing Required
Many liquid-cooling teams iterate faster than their documentation keeps up. We accept physical samples, rough sketches, or reference parts and reverse-engineer production-ready 3D models within 48 hours. This is critical for teams prototyping next-generation cold-plate manifolds or CDU distribution headers where the fitting geometry evolves weekly. Whether you bring a worn sample or a hand-drawn concept, we turn it into a machinable, leak-proof design.
Material & Surface Strategy by Coolant Type
The right material depends on what is flowing through it:
|
De-ionized water / glycol mixtures: |
316L stainless steel with electropolish (Ra ≤ 0.2 μm) eliminates crevice corrosion and biofilm adhesion. |
|
Dielectric fluorocarbon fluids: |
C36000 brass or 6061-T6 aluminum with hard-anodize (Type III, 25 μm) provides chemical compatibility without galvanic risk. |
|
High-purity water loops: |
C11000 OFE copper with nickel flash plating for thermal bridging connectors. |
We do not just "machine what you ask for." We review your coolant spec, operating pressure, and target MTBF before recommending a material-surface pairing that matches your thermal management strategy.
Tolerances That Actually Matter for Liquid Cooling
|
O-ring groove width: |
±0.02 mm |
|
Sealing face perpendicularity: |
0.01 mm |
|
Thread pitch diameter: |
thread-milled, not tapped, to eliminate tear-out |
|
Internal bore concentricity: |
0.03 mm to prevent turbulence-induced cavitation |
These are not marketing numbers. They are the thresholds between a fitting that holds 6 bar indefinitely and one that weeps coolant onto a motherboard. In Data Center Liquid Cooling Fitting Machining, there is no margin for "close enough."
Quality Inspection & Pressure Testing
Every liquid cooling fitting undergoes rigorous inspection because a single leak can compromise an entire server rack.
|
Dimensional Validation: |
CMM (Coordinate Measuring Machine) inspection on thread pitch, O-ring groove diameter, and port positional tolerance. |
|
Surface Finish Control: |
Profilometer verification of sealing surfaces to Ra ≤ 0.2 μm. |
|
Leak Integrity: |
Hydrostatic pressure testing at 1.5× operating pressure; helium leak detection for critical brazed or welded assemblies. |
|
Certifications: |
ISO 9001 quality management; full-process traceability reports available per batch. |
Why Teams Choose Us Over General Machine Shops
General CNC shops treat fittings like brackets. We treat them as pressure-boundary safety components. Our 4-axis and Swiss-type lathe cells are configured specifically for small-diameter fluid connectors (6 mm to 80 mm), with live-tooling stations dedicated to thread milling and micro-groove forming. Setup times are under 90 minutes, which means prototype batches of 20–50 pieces ship in 7 days, not 4 weeks. When your rack design changes on Tuesday, your revised fittings ship the following Tuesday.
Typical Fitments We Produce
- CPU/GPU cold-plate G1/4 and G3/8 inlet/outlet adapters
- CDU manifold multi-port distribution blocks
- UQD (Universal Quick Disconnect) valve bodies and seal cones
- 45° and 90° elbow fittings for tight-rack cable management
- Custom barbed and compression fittings for tubing transitions
Send Your Sample or Drawing
Upload your STEP file, PDF, or physical sample. We will return a DFM review, material recommendation, and pressure-test plan within 48 hours. Prototype MOQ starts at 10 pieces. Production scales without retooling.
