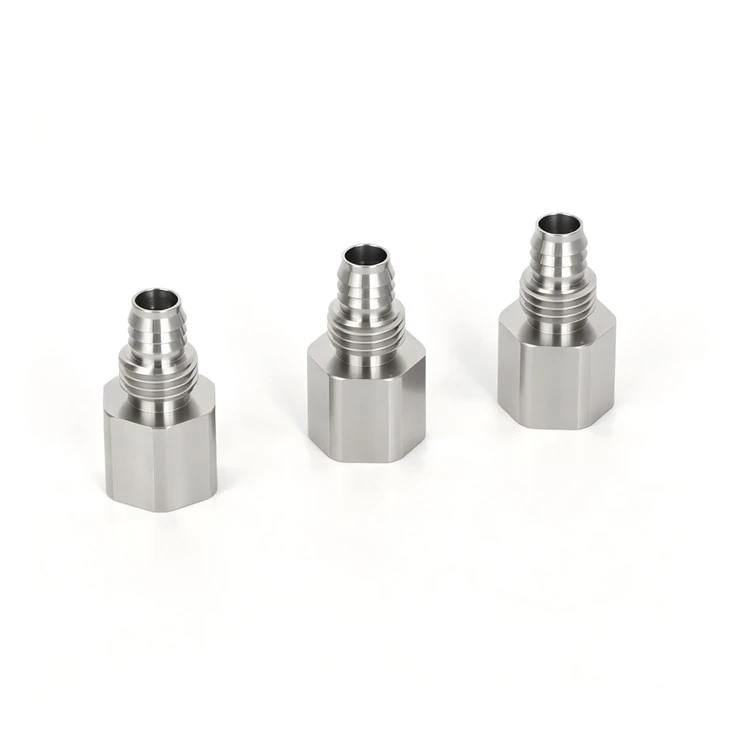

Liquid Cooling Connector Machining
The Real Cost of a Bad Connector
A machined connector that passes CMM inspection can still fail in the field. Why? Because dimensional compliance and leak-proof performance are not the same thing.
We've seen it: threads that gauge correctly but gall on first assembly. O-ring grooves within spec that extrude under thermal cycling. Surfaces smooth enough to pass Ra checks but rough enough to shred elastomer seals.
Our liquid cooling connector machining process is designed around one outcome, zero leaks under operating conditions. Not just on the inspection bench.
What We Machine
Precision fluid connectors for closed-loop thermal management: straight fittings, elbow adapters, quick-disconnect valve bodies, multi-port manifolds. All from solid bar or forging stock, no castings, no porosity, no internal voids waiting to crack under pressure.
Materials matched to your coolant chemistry: 6061-T6 aluminum for lightweight manifolds, brass C36000 for fine-pitch threads, 316L stainless for corrosive glycol loops, copper C11000 for cold plate interfaces. We flag galvanic risks before cutting metal.
The Process Difference
|
Drawing Lock (24h) |
Engineers review your STEP/IGES/PDF for manufacturability. Common catches: O-ring groove radius too tight for standard cutters, internal intersections creating burr traps, thread engagement insufficient for rated pressure. |
|
Precision Machining |
High-Precision turning for long bodies with 0.005 mm runout. Milling for angled ports and internal channels. Thread milling (never tapping) for full form control and chip-free blind holes. |
|
Critical Finishes |
Sealing lands held to Ra ≤ 0.4 μm. O-ring grooves within ±0.015 mm. Thread pitch to Class 2A/2B. |
|
Validation |
CMM on sealing diameters. Air pressure decay at 1.5× working pressure. Helium leak detection for ultra-high-integrity applications. |
Every internal passage is flushed and inspected. No burr left behind to destroy an O-ring on first assembly.
Surface Treatments That Matter
|
Passivation (316L) |
Restores corrosion resistance after machining; non-negotiable for glycol exposure |
|
Anodizing Type II (Aluminum) |
Hard, dyeable surface for flow-path identification and oxidation protection |
|
Electroless Nickel |
Barrier layer for mixed-metal loops; prevents galvanic corrosion where aluminum and brass share coolant |
What Ships With Every Batch
Dimensional report. Material mill certificate. Pressure test certificate. Full batch traceability via serial number.
Certifications: ISO 9001 / IATF 16949
Built For
AI server CDUs. EV battery thermal management. Medical imaging chillers. Aerospace thermal test rigs.
FAQ
|
Q1: |
Internal flow paths in manifold blocks? |
|
A1: |
Yes. Cross-drilled channels, plug-sealed intersections, full flow-path cleaning and pressure testing. |
|
Q2: |
Stock standard fittings? |
|
A2: |
No. Build-to-print only. Every part machined from your drawing for exact system integration. |
|
Q3: |
Can you support annual contracts with scheduled releases? |
|
A3: |
Yes. We maintain raw material inventory and release machined parts against your pull schedule. |
Request Drawing Quotation
Upload your 2D/3D drawings, specify your coolant type and operating pressure, and receive:
- DFM feedback within 24 hours
- Competitive quotation with full process plan
- First article with dimensional report
Liquid cooling connector machining isn't just what we do. It's what we guarantee won't leak.
