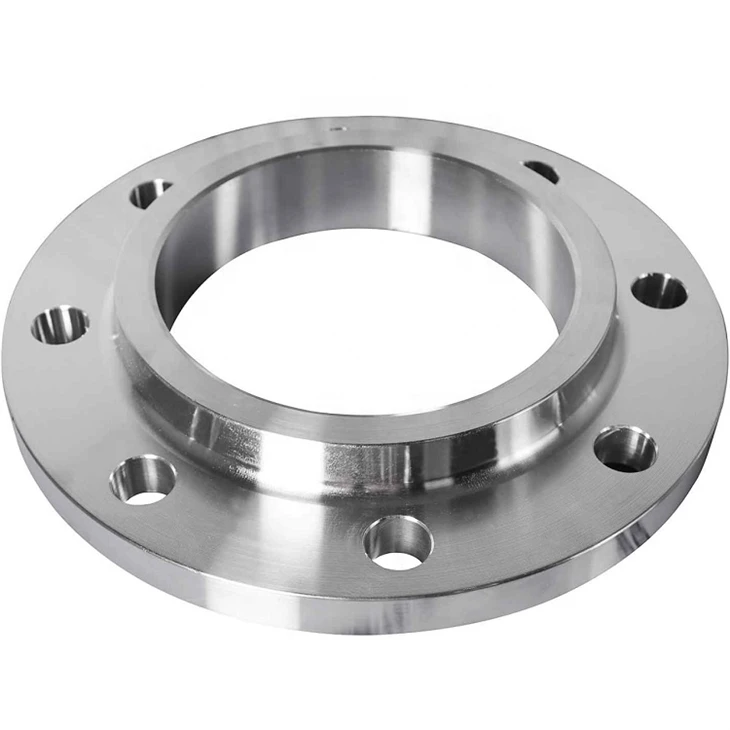

What is machining carbon steel flat face flange?
The sealing surface of machining carbon steel flat face flange is smooth plane, and sometimes there are two or three triangular concentric circular grooves on the sealing surface called water line (sealing line or anti-slip tank) suitable for flat welding flange includes various non-metallic flat gaskets, covering pad, metal bonding pad. With winding gasket (can have both inner or outer ring). loop. Simple structure, easy processing, anti-corrosion lining construction convenience, can reach the nominal pressure force.
01 Part name

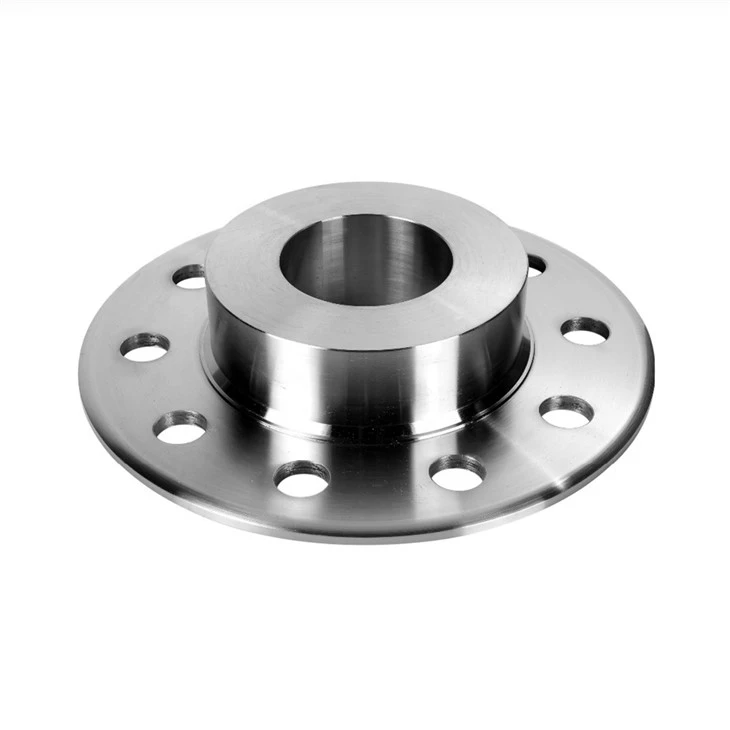

Machining carbon steel flat face flange
02 Application
Industries components
03 Material
Stainless steel
04 Process
Investment casting
& Machining
05 Casting method
Thermal Gravity Casting
06 Surface finished
Shot blasting
Part Application
Investment casting, also known as lost-wax casting, is a manufacturing process used to create metal parts with complex shapes and intricate details
Available Material
|
1-Carbon steel |
2-Low alloy steel |
3-Corrosion-resistant steel |
4-Heat-resistant steel |
||||
|
General engineering cast steel (ISO 3755) |
Carbon and low alloy cast steels for general applications (ISO 14737) |
Corrosion-resistant cast steels for general applications (ISO 11972) |
Heat-resistant cast steels and alloys for general applications (ISO 11973) |
||||
|
200-400 |
400-550MPa |
GE200 |
1.0420 |
GX12Cr12 |
1.4011 |
GX30CrSi7 |
1.4710 |
|
200-400W |
400-550MPa |
GE240 |
1.0446 |
GX2CrNi19-11 |
1.4309 |
GX40CrSi13 |
1.4720 |
|
230-450 |
450-600MPa |
GS340 |
1.0467 |
GX5CrNi19-10 |
1.4308 |
GX40CrSi17 |
1.4740 |
|
230-450W |
450-600MPa |
G20Mo5 |
1.5419 |
GX5CrNiMoNb19-11-2 |
1.4581 |
GX40CrSi24 |
1.4745 |
|
270-480 |
480-650MPa |
G42CrMo4 |
1.7231 |
GX5CrNiMoN19-11-3 |
1.4412 |
GX25CrNiSi18-9 |
1.4825 |
|
270-480W |
480-650MPa |
G28Mn6 |
1.1165 |
GX2NiCrMoCuN25-20-6 |
1.4588 |
GX40CrNiSi25-12 |
1.4837 |
|
340-550 |
550-720MPa |
G26CrMo4 |
1.7221 |
GX5CrNiMoCuN 26-6-3 |
1.4515 |
GX40CrNiSi25-20 |
1.4848 |
Production Process Introduce
RFQ handle process
Get contactYou can find our contact info for further communication in "Contact US" column.
Send drawingThe 2&3D drawing format can be PDF, STEP, DWG, DXF and soon, can be sent via email. Wechat, WhatsApp, link.
Get quotationAfter clear the demand of customer, we can send you the quotation with PDF format for documentation.
Sign NDAFor requirements for confidentiality of drawings, we can signed the NDA before you send drawing.
Finish feasibility studyThe feasibility study of drawing is most key point to ensure the part can be fully meet drawing specifications, which is include material, dimension, surface treatment, and testing request.
Product Advantages
SJ-Machinery Engineering enhances the design for efficient mass production without requiring post-processing. Featuring a robust design, it ensures peak functionality at the most competitive production cost. Simultaneously casting an oil channel in the valve stem pocket optimizes weight reduction through a 'Near Net Shape' approach. This leads to reduced inertia in the valve mechanism, contributing to fuel savings. The component is cast in hardened steel without the need for additional post-processing, resulting in significant cost efficiencies.
