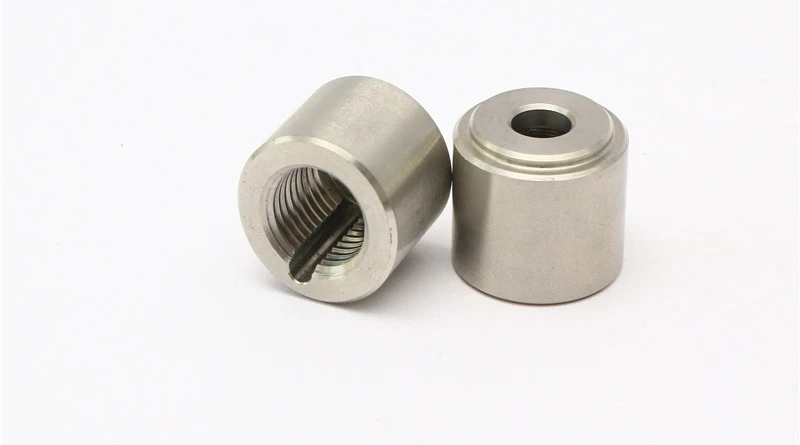

CNC Machining SS304 EGR Sensor Boss

CNC Machining SS304 EGR Sensor Boss
Details:
Our CNC Machining SS304 EGR Sensor Boss is precision-engineered for automotive EGR (Exhaust Gas Recirculation) and exhaust after-treatment systems, where reliable sensor mounting under extreme heat, vibration, and corrosive gases is critical. Machined from SS304 austenitic stainless steel, this sensor boss delivers outstanding oxidation resistance, thermal stability, and mechanical strength at continuous operating temperatures exceeding 600°C. We specialize in fully custom manufacturing based on customer 2D/3D drawings or physical samples, ensuring every sensor boss matches your exact thread specification, port geometry, flange thickness, and installation footprint for leak-free, long-term performance in demanding exhaust environments.
Send Inquiry
Download
Description
Technical Parameters

Key Features



  • Material: SS304 stainless steel (SS316 / SS316L / 321 available on request)
  • Process: Precision CNC turning + 3/4/5-axis CNC milling
  • Tolerance: ±0.05mm standard; tighter geometric tolerances supported per drawing
  • Surface Finish: Ra 1.6–3.2μm as-machined; optional vibration deburring and passivation
  • Threads: Custom NPT, BSP, metric, or UNF machined to exact specification
  • MOQ: Flexible from single prototypes to high-volume serial production



Material & Grade Selection

Every material batch is verified by spectrographic analysis before machining, ensuring full compliance with ASTM or EN standards and complete material traceability.

Grade

Key Composition

Core Properties

SS304 (ASTM A276 / EN 1.4301)

18% Cr, 8% Ni

Excellent oxidation resistance up to 600°C continuous; stable austenitic structure prevents thermal embrittlement

SS316 (ASTM A276 / EN 1.4401)

18% Cr, 10% Ni, 2–3% Mo

Superior chloride corrosion resistance vs. SS304; ideal for marine and coastal environments

SS316L (ASTM A276 / EN 1.4404)

18% Cr, 10% Ni, 2–3% Mo, ≤0.03% C

Same corrosion resistance as SS316 with lower carbon content; minimizes intergranular corrosion risk after welding

321 (ASTM A276 / EN 1.4541)

18% Cr, 9% Ni, Ti stabilized

Titanium addition prevents chromium carbide precipitation; maintains strength during extreme thermal cycling above 800°C



Technical Specifications

Parameter

Specification

Manufacturing Process

CNC turning + 3/4/5-axis CNC milling

Dimensional Tolerance

±0.05mm standard; tighter per drawing

Surface Roughness

Ra 1.6–3.2μm as-machined

Thread Types

NPT, BSP, metric, UNF (custom per drawing)

Max Operating

Temperature >600°C continuous

Quality System

ISO 9001 certified with full lot traceability



product-800-533



Quality Inspection & Certification

  • CMM dimensional inspection for critical mounting and sealing surfaces
  • Thread gauge verification to ensure proper sensor engagement and seal integrity
  • Surface roughness measurement confirming Ra 1.6–3.2μm specification
  • Spectrographic material composition analysis guaranteeing SS304 grade purity
  • Full lot traceability and documentation under ISO 9001 quality management system



Typical Applications

  • Passenger vehicle EGR valve temperature and pressure sensor ports
  • Light and heavy-duty diesel truck exhaust after-treatment system sensor mounts
  • Turbocharger exhaust-side temperature sensor bosses
  • Catalytic converter inlet / outlet monitoring station fittings
  • Industrial diesel and gas engine emission control module sensor interfaces



Why Choose Our CNC Machining SS304 EGR Sensor Boss

  • Vertically integrated CNC machining factory in Ningbo, China, with full in-house process control
  • In-house DFM review reduces machining cost, prevents design issues, and shortens lead time
  • Stable batch-to-batch dimensional consistency and thread integrity backed by statistical process control
  • Fast sample turnaround: 2–3 weeks after drawing confirmation
  • Bulk production lead time: 4–6 weeks depending on quantity and finishing requirements



Request a Quotation

Submit your STEP, IGS, PDF, or DWG drawing together with estimated annual volume and target delivery schedule. Our engineering team will provide a comprehensive DFM report and competitive quotation within 48 hours.



FAQ

Q1:

What is an EGR sensor boss and how is it used in exhaust systems?

A1:

An EGR sensor boss is a machined stainless steel port that provides a threaded mounting location for temperature or pressure sensors within an exhaust gas recirculation circuit. It must withstand continuous thermal cycling, vibration, and corrosive exhaust gases without cracking or leaking.

Q2:

What machining tolerance can you hold on an SS304 EGR sensor boss?

A2:

Our standard CNC machining tolerance is ±0.05mm. For critical sensor sealing surfaces or alignment bores, we can achieve tighter geometric tolerances based on your drawing requirements.

Q3:

What surface treatments are available for stainless steel EGR sensor bosses?

A3:

Standard as-machined finish is Ra 1.6–3.2μm. We also offer vibration deburring to remove machining burrs, plus electrochemical passivation to enhance the natural oxide layer and improve corrosion resistance in aggressive exhaust environments.
