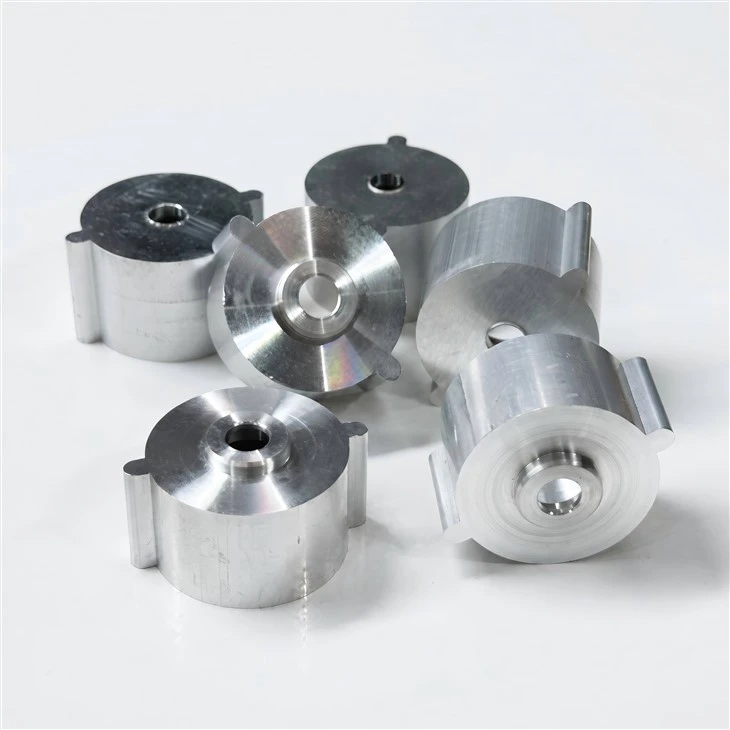

Liquid Cooled Drone Motor Housing
Manufacturing Strategy: Lathe + Mill + Turn-Mill Composite
We deploy a targeted three-station workflow optimized for cylindrical motor housings with internal cooling architecture:
- CNC Lathe Operations – Precision turning of outer diameter profiles, motor bore housings, and internal cooling galleries. Our lathes achieve tight concentricity between the motor seat bore and outer mounting diameter, a geometric relationship that directly affects rotor alignment and vibration characteristics. Threaded coolant ports (NPT, BSPP, or metric fine) are single-setup thread-turned or rigid-tapped to eliminate cross-threading and ensure full-depth engagement.
- CNC Milling Operations – Dedicated milling stations handle flat sealing flanges, mounting ear profiles, sensor pockets, and keyway slots. Using precision vises and custom soft-jaw fixtures, we maintain perpendicularity between milled mounting faces and turned bores within 0.03 mm, critical for parallel motor-to-frame alignment in multi-rotor arrays.
- Turn-Mill Composite Machining – For complex housings requiring both rotational symmetry and asymmetric features, our turn-mill centers complete turning, milling, drilling, and tapping in a single chucking. This eliminates repeated setup errors between lathe and mill, preserving coaxiality of cooling jacket bores relative to external mounting lugs. One-clamping production is especially valuable for thin-walled aluminum housings where multiple chucking operations risk ovality or wall distortion.
Material & Engineering Review
We machine from 6061-T6, 7075-T6, and 2024-T4 aluminum, selecting grades based on your thermal conductivity targets, weight constraints, and anodizing requirements. Upon drawing receipt, our engineers conduct a 48-hour manufacturability review focused on liquid cooling feasibility: evaluating internal channel depths for lathe tool reach, confirming wall thickness between cooling jacket and outer profile to prevent turning chatter, and optimizing port angles for clean thread formation. DFM recommendations are returned with adjusted boss heights, relieved internal corners, or simplified groove geometries that reduce cycle time while preserving thermal performance.
Leak-Tested Quality Assurance
Because a liquid-cooled system cannot tolerate porosity or micro-leakage, every Liquid Cooled Drone Motor Housing is pressure-tested at 1.5× operational coolant pressure using decay-rate measurement. Additional verification includes:
- Bore micrometer and dial bore gauge inspection for motor seat diameter
- Surface plate and height gauge checking of flange flatness
- Thread plug gauge verification for all fluid and mounting ports
- Surface roughness inspection on O-ring sealing lands (Ra 1.6–3.2 μm)
All processes operate under ISO 9001 certified systems, with material mill certificates and dimensional inspection reports provided per order.
Surface Treatment & Export Packaging
Housings receive sulfuric acid anodizing (Type II or Type III hardcoat) for corrosion resistance and dielectric isolation. Chromate conversion coating is available where electrical grounding paths must be preserved. After final inspection, parts are individually sleeved in PE film, nested in custom-cut EPE foam, and packed in double-wall export cartons to protect sealing faces during ocean freight.
UAV Application Scenarios
These machined housings serve commercial cinematography drones requiring silent sustained hover, agricultural UAVs operating under high-throttle spray loads, heavy-lift cargo platforms, and long-endurance survey aircraft. In each case, the liquid cooling architecture enables continuous peak power without thermal rollback, directly translating to longer flight times and heavier safe payloads.
Request Drawing Quotation
Submit your 2D/3D drawings, preferred aluminum grade, and estimated annual volume. Our team will analyze machinability for lathe, mill, and turn-mill routing, then return a detailed process plan and competitive quotation within 48 hours. Prototype runs are available for thermal validation and fit confirmation before production commitment.
