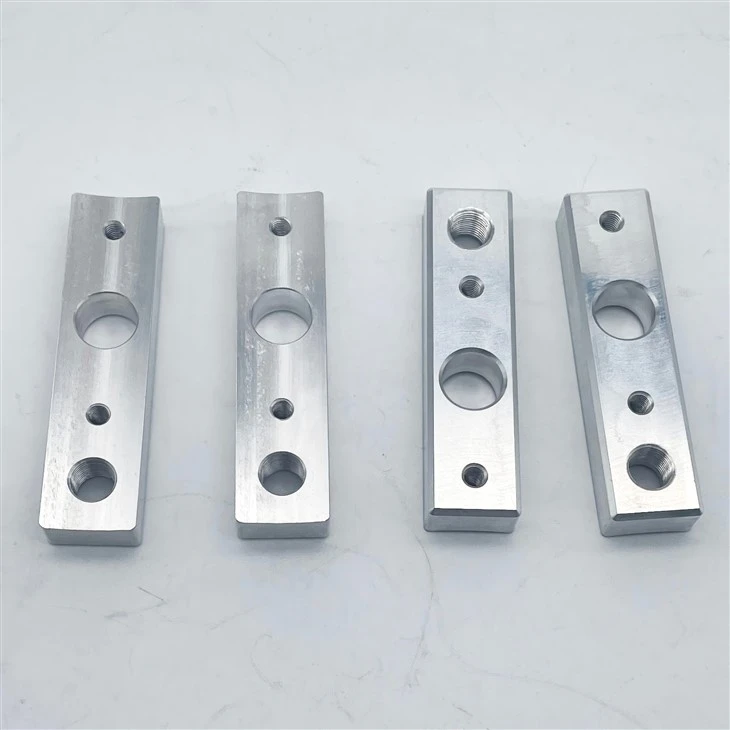

6061-T6 Aluminum CNC Milling Joint Plates
Product Highlights
|
Feature |
Description |
|
Product Name |
Aluminum CNC Milling Joint Plates |
|
Material |
6061-T6 Aluminum Alloy |
|
Manufacturing Process |
CNC Milling, Drilling, Tapping, Surface Finishing |
|
Service Type |
OEM / Custom Manufacturing |
|
Production Volume |
Prototype, Small Batch, Mass Production |
|
Material Advantages: |
6061-T6 Aluminum Alloy |
6061-T6 aluminum alloy is widely used in precision machining applications due to its excellent balance of strength, corrosion resistance, and machinability.
Material Specifications
|
Property |
Value |
|
Material Grade |
6061-T6 Aluminum |
|
Tensile Strength |
≥290 MPa |
|
Yield Strength |
≥240 MPa |
|
Hardness |
HB 95+ |
|
Corrosion Resistance |
Excellent |
|
Machinability |
Excellent |
|
Weight Advantage |
Lightweight Structure |
Material Benefits
- High strength-to-weight ratio for lightweight designs
- Excellent corrosion resistance for outdoor applications
- Good machining performance for complex geometries
- Stable mechanical properties after heat treatment
- Suitable for precision structural components
All aluminum materials are supplied with material certificates and full batch traceability upon request.
CNC Milling Manufacturing Capability
As a professional CNC machining factory, we provide complete manufacturing solutions from engineering review to final inspection.
Machining Capability
|
Capability |
Specification |
|
Maximum Workpiece Size |
1,200 × 600 × 500 mm |
|
Machining Accuracy |
±0.01–0.05 mm |
|
Positioning Accuracy |
±0.005 mm |
|
Surface Roughness |
Ra 0.8–3.2 μm |
|
Production Capacity |
1 pcs Prototype to 10,000+ pcs |
|
Inspection Equipment |
CMM, Height Gauge, Surface Tester |
Manufacturing Process
|
Process Step |
Description |
|
Engineering Review |
Drawing analysis and manufacturing evaluation |
|
DFM Analysis |
Optimize structure and reduce machining cost |
|
CNC Programming |
Generate precision machining programs |
|
Fixture Design |
Ensure stable and repeatable production |
|
CNC Milling |
Precision cutting and hole machining |
|
Deburring |
Remove sharp edges and improve safety |
|
Surface Treatment |
Improve appearance and durability |
|
Quality Inspection |
Verify dimensions and performance |
|
Packaging |
Protective industrial packaging |
Engineering Support & DFM Optimization
Before production, our engineers review customer designs and provide manufacturing suggestions.
DFM Service Includes:
- Optimizing machining direction and datum references
- Improving hole patterns and tolerances
- Adjusting corner radius for better machining efficiency
- Reducing unnecessary machining operations
- Lowering production costs while maintaining performance
Our engineering team can provide professional manufacturing recommendations within 48 hours after receiving drawings.
Surface Treatment Options
To improve corrosion resistance, appearance, and service life, we provide multiple finishing solutions.
|
Surface Treatment |
Function |
|
Natural Anodizing |
Corrosion protection and improved appearance |
|
Hard Anodizing |
Wear-resistant surface for demanding applications |
|
Sandblasting + Anodizing |
Decorative and protective finish |
|
Chem Film / Alodine |
Conductive corrosion protection |
Available anodizing colors:
- Black
- Silver
- Blue
- Red
- Customized colors
- Quality Inspection
Every batch of 6061-T6 Aluminum CNC Milling Joint Plates is inspected according to customer specifications.
Quality Control Equipment
|
Inspection Method |
Purpose |
|
CMM Inspection |
Hole position, flatness, parallelism, geometry |
|
Height Gauge |
Critical dimensional verification |
|
Pin Gauge |
Hole size inspection |
|
Surface Roughness Tester |
Surface finish measurement |
|
Material Testing |
Alloy verification |
Quality Management:
- ISO 9001 quality system
- Dimensional inspection reports available
- Material certificates provided
- Full production traceability
Typical Applications
Our aluminum joint plates are widely used in:
- Industrial automation equipment
- Aluminum profile frame systems
- Robotics mounting structures
- Mechanical assembly systems
- Aerospace fixtures and tooling
- Automotive testing equipment
- Custom machinery components
OEM CNC Machining Service
We support customers worldwide with complete aluminum machining solutions.
Please send your:
- STEP / IGES 3D files
- DWG / PDF drawings
- Material requirements
- Quantity and delivery requirements
Our engineering team will provide:
- DFM analysis
- Manufacturing suggestions
- Competitive quotation
- Prototype and mass production support
With precision machining capability and flexible production solutions, we help customers manufacture reliable aluminum components with consistent quality and competitive cost.
