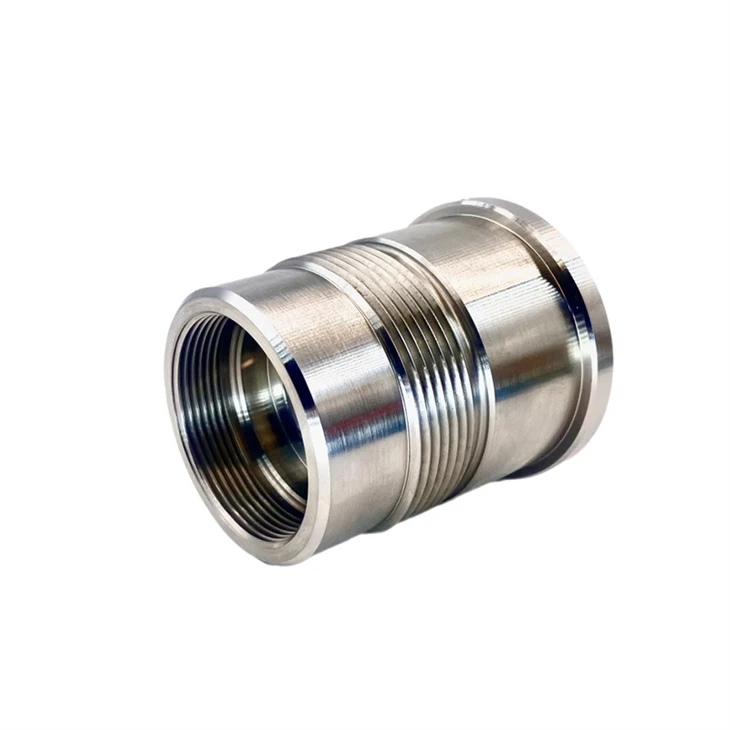

Floating Blind Mate Precision Tolerance Machining
Backed by advanced CNC equipment, experienced engineers, and certified quality management systems, we supply precision components for automotive, aerospace, electronics, industrial equipment, and medical applications.
Complete OEM CNC Manufacturing Service
We provide a complete in-house machining solution from engineering review to final delivery, ensuring consistent quality and shorter production lead times.
Our manufacturing process includes:
- Engineering drawing review and DFM analysis
- CNC programming
- Precision CNC milling and turning
- Heat treatment (if required)
- Surface finishing
- Dimensional inspection
- Export packaging
Production is managed under ISO 9001 and IATF 16949 quality systems to ensure every part meets customer specifications.
Precision Manufacturing According to Customer Drawings
Every project is manufactured exclusively based on customer technical drawings and tolerance requirements.
Supported file formats
- STEP
- IGS
- DWG
- Other 2D/3D CAD formats
Machining capability
|
Item |
Specification |
|
Standard Tolerance |
±0.01 mm |
|
High Precision |
±0.005 mm (upon request) |
|
GD&T Standard |
ASME Y14.5 |
|
Surface Finish |
Ra 0.4–6.3 μm |
For Floating Blind Mate Precision Tolerance Machining, particular attention is given to concentricity, positional accuracy, perpendicularity, and surface quality to ensure reliable floating alignment and repeatable blind mating performance.
Our engineering team reviews customer drawings within 48 hours and provides manufacturability recommendations to optimize production cost while maintaining critical tolerances.
Materials Available
We machine a wide variety of engineering materials with full material certification and traceability.
|
Material |
Common Grades |
|
Stainless Steel |
304, 316, 316L, 17-4PH |
|
Carbon Steel |
20#, 45#, 42CrMo |
|
Aluminum Alloy |
6061-T6, 7075-T6, A356 |
|
Brass & Copper |
H59, H62, C36000 |
Material recommendations are available based on application requirements, strength, corrosion resistance, and machining performance.
Surface Treatment & Heat Treatment
To improve durability, corrosion resistance, and functional performance, we provide multiple secondary processes, including:
- Stress relieving
- Annealing
- Hardening and tempering
- Vibratory deburring
- Stainless steel passivation
- Hard anodizing
- Electroless nickel plating
All treatments are selected according to customer specifications and application requirements.
Quality Inspection
Quality assurance is integrated throughout every production stage.
Inspection equipment and methods include:
- Coordinate Measuring Machine (CMM)
- Optical measuring systems
- Bore gauges and thread gauges
- Hardness testing
- Material composition verification
- Blind mate functional testing
- Load and torque testing
Each production batch can be supplied with dimensional inspection reports, CMM reports, material certificates, and full traceability documentation.
Typical Applications
Our Floating Blind Mate Precision Tolerance Machining solutions are widely used in industries where accurate alignment and reliable assembly are essential.
Typical applications include:
- Automotive turbocharger connectors
- Exhaust system interfaces
- Aerospace alignment sleeves
- Floating fastening systems
- Medical instrument couplings
- Hydraulic manifold connectors
- Pneumatic fittings
- RF connector housings
- Electronic precision interface components
FAQ
|
Q1: |
What is your minimum order quantity (MOQ)? |
|
A1: |
We accept small trial orders starting from 50 pieces, with flexible scaling for volume production. |
|
Q2: |
What tolerance can you achieve for blind mate features? |
|
A2: |
Standard tolerance is ±0.01mm. For critical floating alignment interfaces, we can achieve ±0.005mm upon engineering review. |
|
Q3: |
Do you provide material certification and inspection reports? |
|
A3: |
Yes. Every order includes material certificates, dimensional inspection reports, and CMM data. Full traceability documentation is available. |
Request a Custom Quote
If you are looking for an experienced CNC machining supplier for precision blind mate components, our engineering team is ready to help.
Simply send us your 2D or 3D drawings, material requirements, annual quantity, and application details. We will provide a detailed manufacturing evaluation and competitive quotation within 48 hours.
