High Precision Investment Casting

High Precision Investment Casting
Details:
High precision casting investment casting, also known as precision casting, is a manufacturing process that involves producing metal parts with complex geometries and intricate details. This process is widely used in industries such as aerospace, automotive, valve, pump, and industries.
Send Inquiry
Download
Description
Technical Parameters

What is High precision investment casting components?

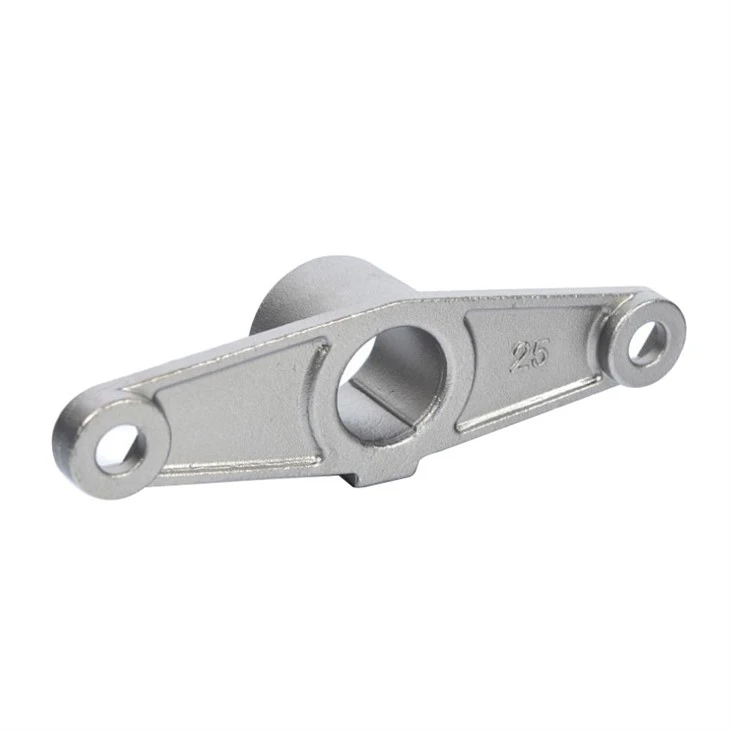

A6-High precision investment casting 1001

High precision casting investment casting, also known as precision casting, is a manufacturing process that involves producing metal parts with complex geometries and intricate details. This process is widely used in industries such as aerospace, automotive, valve, pump, and industries.
Stainless steel investment casting offers several advantages, including:
Complex Geometries: Allows for the production of parts with intricate shapes and fine details.
High Accuracy: Provides excellent dimensional accuracy and surface finish.
Material Flexibility: Can be used with a wide range of metals and alloys.
Cost-Effectiveness: Cost-effective for small to medium production runs.

1

01 Part name

Casting mounting base

2

02 Application

Investment casting spare parts

3

03 Material

Stainless steel 1.4308

4

04 Process

Investment casting
& Machining

5

05 Casting method

Thermal Gravity Casting

6

06 Surface finished

Pickling Passivation



Part Application



2
Investment castings

Investment casting, also known as lost-wax casting, is a manufacturing process used to create metal parts with complex shapes and intricate details








Available Material

1-Carbon steel

2-Low alloy steel

3-Corrosion-resistant steel

4-Heat-resistant steel

General engineering cast steel (ISO 3755)

Carbon and low alloy cast steels for general applications (ISO 14737)

Corrosion-resistant cast steels for general applications (ISO 11972)

Heat-resistant cast steels and alloys for general applications (ISO 11973)

200-400

400-550MPa

GE200

1.0420

GX12Cr12

1.4011

GX30CrSi7

1.4710

200-400W

400-550MPa

GE240

1.0446

GX2CrNi19-11

1.4309

GX40CrSi13

1.4720

230-450

450-600MPa

GS340

1.0467

GX5CrNi19-10

1.4308

GX40CrSi17

1.4740

230-450W

450-600MPa

G20Mo5

1.5419

GX5CrNiMoNb19-11-2

1.4581

GX40CrSi24

1.4745

270-480

480-650MPa

G42CrMo4

1.7231

GX5CrNiMoN19-11-3

1.4412

GX25CrNiSi18-9

1.4825

270-480W

480-650MPa

G28Mn6

1.1165

GX2NiCrMoCuN25-20-6

1.4588

GX40CrNiSi25-12

1.4837

340-550

550-720MPa

G26CrMo4

1.7221

GX5CrNiMoCuN 26-6-3

1.4515

GX40CrNiSi25-20

1.4848



Production Process Introduce





3233



RFQ handle process



  • product-1-1
    Get contact

    You can find our contact info for further communication in "Contact US" column.

  • product-1-1
    Send drawing

    The 2&3D drawing format can be PDF, STEP, DWG, DXF and soon, can be sent via email. Wechat, WhatsApp, link.

  • product-1-1
    Get quotation

    After clear the demand of customer, we can send you the quotation with PDF format for documentation.

  • product-1-1
  • product-1-1
    Sign NDA

    For requirements for confidentiality of drawings, we can signed the NDA before you send drawing.

  • product-1-1
    Finish feasibility study

    The feasibility study of drawing is most key point to ensure the part can be fully meet drawing specifications, which is include material, dimension, surface treatment, and testing request.





FAQ

Which field are your products applied to? > Our products are widely used into the industry, such as steering system of automotive, pipe in the hydraulic system, tempreture or Oxyzen sensor boss in EGR system, mounting base in the rail mounting system and so on.

If l have a product wants to be made in other special material, can you do it? > Yes, but this is main for casting parts, as we can compose the chemical composition when melting the metal in the furnace, then it has differen machenical performance whtch can meet customer requirement.

Do you have after-sale service? > Yes, we have reliable after-sale service for our customer, we know that a good after-sale service is the key to get more market and longship relationship with customer, so our quality and sales team need response customer complaince and craest 8D report in reasonalble timing, sometimes Fishbone analysis is needed for fully evaluation.

What about the lead time for mass production? > "Honestly, it depends on the order quantity and the manufacturing process,for example.
1: Casting and machining parts, its about 25-50days, it depends on the whole manufcaturing process, sometimes , it need surface treatment for heat treatment to meet the relatively properties.
2: Only CNC machining parts, normally about 15-20days for first batch.
Anyway, the QTY is aslo another factors effect on the leadtime."

What's your MOQ?> If we have the products in stock, then MOQ is not effect too much, and unit price maight be the key factors for both party. If customzied parts, we can discuss MOQ case by case, but anyway the most importance is fully communication with customer and satisfy for them.
