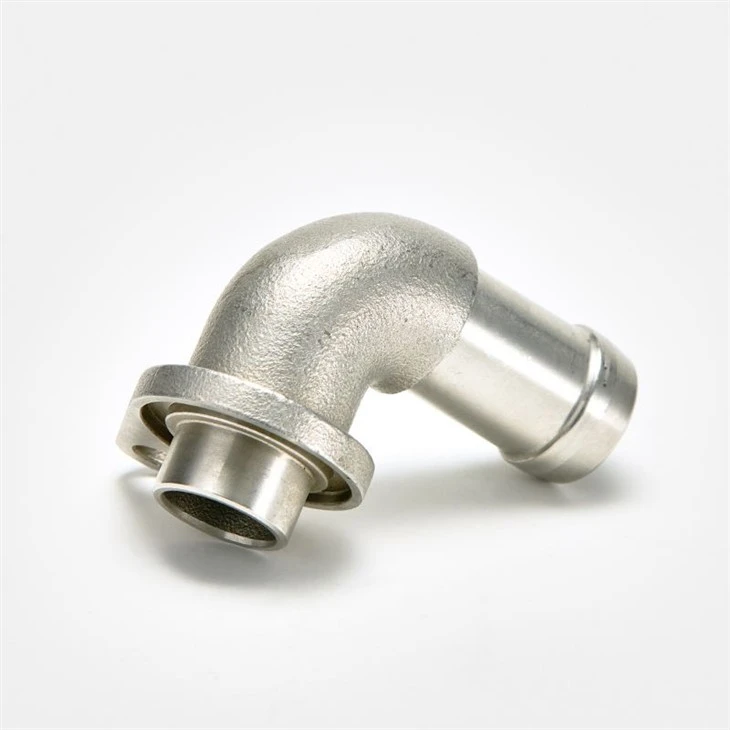

304 Stainless Steel Liquid Cooling Connector
Why Investment Casting for Liquid Cooling Hardware
Liquid cooling connectors demand internal geometries that machined bar stock cannot economically produce: multi-plane flow passages, thin-walled transition zones, and integrated mounting features. Investment casting resolves this by forming complex 3D channels in a single metal pour, eliminating brazed joints and their associated leak paths.
For 304 Stainless Steel Liquid Cooling Connector production, we leverage shell technology with vacuum-assisted pouring. The result: full-density castings with surface finishes of Ra 3.2–6.3 μm, reducing post-cast machining to sealing surfaces and thread forms only. Material utilization improves by approximately 40% versus solid-block machining, a cost advantage that compounds at production scale.
Drawing-to-Part Workflow
Every connector project begins with engineering review of customer-supplied STEP, IGS, or PDF files. Within 48 hours, our casting engineers return a DFM report addressing:
|
Wall thickness uniformity |
Critical for 304 stainless solidification behavior |
|
Draft angle optimization |
Minimizing machining stock on sealing faces |
|
Gating strategy |
Ensuring complete fill in thin-section cooling passages |
|
Tolerance feasibility |
Distinguishing as-cast versus must-machine dimensions |
Tooling design and wax pattern production follow entirely in-house. No external mold shops. No specification drift.
Material & Process Specifications
|
Parameter |
Specification |
|
Primary Material |
304 Stainless Steel (ASTM A351 CF8 equivalent) |
|
Optional Grades |
316, 316L, CF8M, CF3M, duplex 2205 |
|
Casting Weight Range |
0.05 – 15 kg per piece |
|
Maximum Envelope |
600 × 600 × 400 mm |
|
Casting Tolerance |
±0.2 mm (ISO 8062 CT7–8) |
|
Machined Sealing Tolerance |
±0.01 mm on O-ring grooves and flare faces |
|
Heat Treatment |
Solution annealing per customer requirement |
|
Surface Finish |
Passivation standard; electropolishing available |
CNC Machining as Casting Completion
Casting defines the connector's body. CNC machining perfects its function.
Our machining floor handles drilling, threading, O-ring groove cutting, and surface finishing for sealing interfaces. Critical dimensions are verified on CMM against customer drawings. For 304 Stainless Steel Liquid Cooling Connector orders, thread forms are gauged 100% before release to surface treatment.
Validation Before Shipment
|
Dimensional: |
CMM on all machined sealing features |
|
Structural: |
X-ray inspection for internal porosity in flow passages |
|
Material: |
Spectrometry to confirm 304 chemistry (Cr 18–20%, Ni 8–10.5%) |
|
Pressure: |
Hydrostatic leak testing per customer specification |
|
Documentation: |
Mill test certificates, inspection reports, full batch traceability |
Quality system certified to IATF 16949 and ISO 9001.
Deployment Contexts
These connectors currently circulate coolant in:
- AI training cluster cold plates and manifolds
- EV battery pack thermal management circuits
- High-frequency power electronics cooling loops
- Medical imaging equipment liquid cooling distribution
Each application imposes different pressure, temperature, and chemical compatibility requirements. We configure material grade, heat treatment, and surface finish accordingly.
Start with a Drawing
Submit your 2D or 3D files, annual volume estimate, and operating fluid specification. We return a manufacturing assessment and quotation within two business days. Prototype quantities accepted.
FAQ
|
Q1: |
Why choose casting over machining for liquid cooling connectors? |
|
A1: |
Investment casting forms complex internal passages in one pour-no brazed joints, no gun-drilling. For 304 Stainless Steel Liquid Cooling Connector production, this cuts material waste by ~40% and eliminates leak paths. |
|
Q2: |
What pressure can these connectors handle? |
|
A2: |
Typical data center assemblies are qualified to 10–20 bar working pressure, tested at 1.5×. Higher ratings available via wall thickness and heat treatment adjustments. |
|
Q3: |
Can you match existing QD or manifold interface standards? |
|
A3: |
Yes. We machine O-ring grooves per AS568, 37° JIC flares, and custom quick-disconnect profiles per your mating part drawings. |
