Investment Precision Casting Door Hinge

Product: Investment Precision Casting Door Hinge – Matching Left & Right Halves with Assembly Pin

A door hinge made from investment precision casting process would likely be a high-quality door hinge known for its accuracy, fine detail, and high strength. This process allows for the production of complex shapes that might be difficult or impossible to achieve through other manufacturing methods, such as stamping ang bending process.
Such door hinges would typically be durable, with smooth surfaces and tight tolerances, making them suitable for applications where precision and reliability are essential, such as in high-end furniture, architectural applications, or specialized industrial equipment where smooth operation and longevity are crucial.
H1: Precision Investment Cast Stainless Steel Door Hinge – Complete Kit with Left/Right Leaves and Assembly Pin

1. Core Features at a Glance

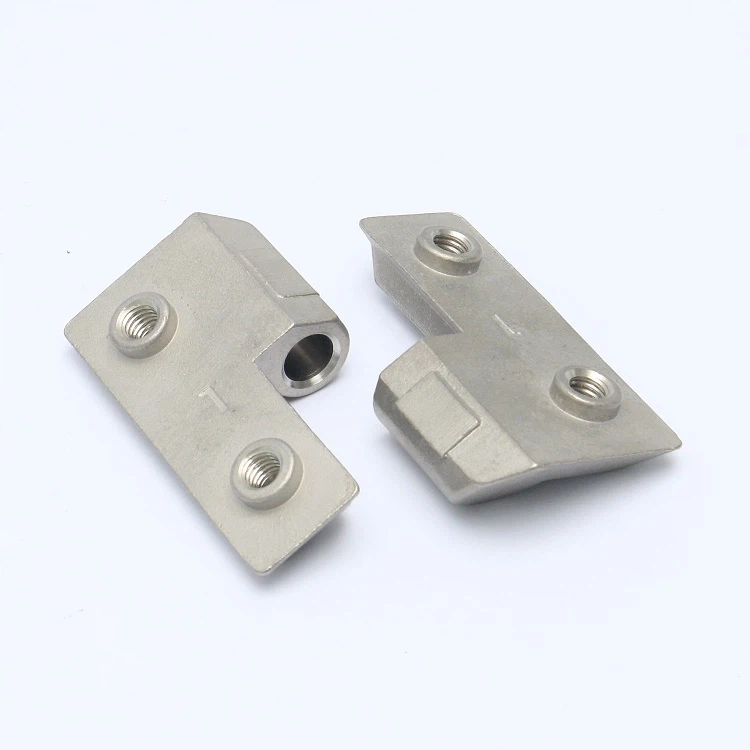

Complete Kit Packaging: Each box contains one left leaf, one right leaf, and the matching pivot pin – ready for retail display or direct assembly line installation.

Investment Cast Precision: Near-net shape casting minimizes material waste while achieving consistent wall thickness and smooth surface finish.

CNC-Machined Critical Surfaces: Pin holes and mating faces are finish-machined on CNC centers for perfect alignment and smooth swing action.

Interchangeable Design: All leaves are produced to tight tolerances, ensuring any left leaf mates perfectly with any right leaf from the same production batch.

Material Options: Available in 304/316 stainless steel, carbon steel – with optional surface finishes (polished, brushed, or powder-coated).

100% Assembled & Tested: Every kit is hand-assembled to verify fit and swing before packaging.

2. Process Advantage: From Wax to Finished Kit – Complete Control Under One Roof

This hinge isn't just two castings thrown together. It's a carefully engineered assembly where the left leaf, right leaf, and pin are designed to work as a system.

The surface of casting has marks R and L for difference.

Here's how we ensure that system performs:

Precision Casting First: Each leaf is investment cast using water-based silica sol slurry and dewaxed in a controlled atmosphere furnace.

This gives us consistent dimensional stability and a surface finish that requires minimal cleanup.

CNC Machining for Perfect Mating: The raw castings are loaded into custom-designed fixtures that locate off the casting datums.

In a single CNC operation, we machine:

• The pin bores (top and bottom) with concentricity held to 0.05 mm TIR
• The mating face between leaves
• Counterbores for decorative screw heads (if specified)

Pin Manufacturing: The pivot pin is turned from solid bar stock on our CNC lathes, with diameters matched to the machined bores for a smooth slip-fit – not too loose, not too tight.

Matching by Design: Because all bores are machined using the same program and tooling, you can grab any left leaf and any right leaf from the batch, and they'll assemble without binding.

3. Quality Assurance – Consistency You Can Feel

A hinge that binds or wobbles ruins the user experience. We test for feel, not just dimensions.

1. Go/No-Go Pin Testing: After machining, every leaf is tested with a master pin to ensure the bore diameter and alignment are correct. The pin should slide through both bores with light finger pressure.
2. Swing Angle Verification: Random samples from each batch are assembled and cycled to verify smooth operation through the full range of motion.
3. Kit Assembly Check: Before packaging, we assemble each left/right pair with its pin to confirm fit. Then we disassemble and pack all three components together – so your customer receives a guaranteed-matching set.
4. Material Traceability: Casting heat numbers are tracked through the entire process. Material certifications available upon request.

4. Technical Specifications & Applications

Typical Applications:

1. Industrial access doors and panels
2. Architectural metalwork
3. Marine and RV cabinetry
4. Retail hardware packaging (DIY/home improvement)

Why This Kit Approach Works Better

We don't just ship you bins of loose castings. By packaging matched left/right pairs with the correctly sized pin, we eliminate your need to sort, match, or source separate components. Your assembly team (or your end customer) opens one box and has everything needed for one complete door installation.

And because we machine the bores after casting – referencing the same fixture every time – the pins fit consistently. No filing, no reaming, no frustrating "this pair works but that one doesn't" complaints.

Send us your hinge profile drawing or sample. We'll provide first-article castings and machined samples for your approval before production.
