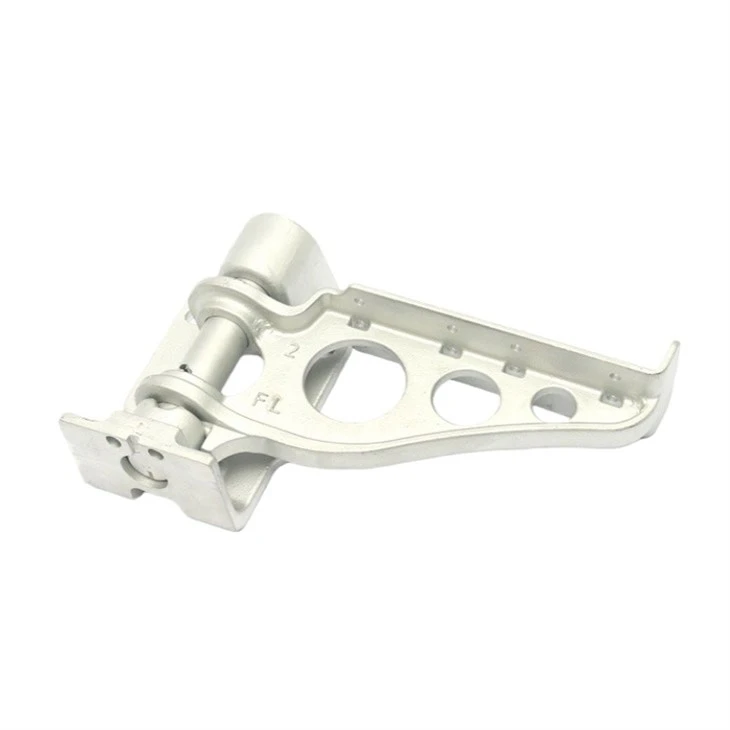

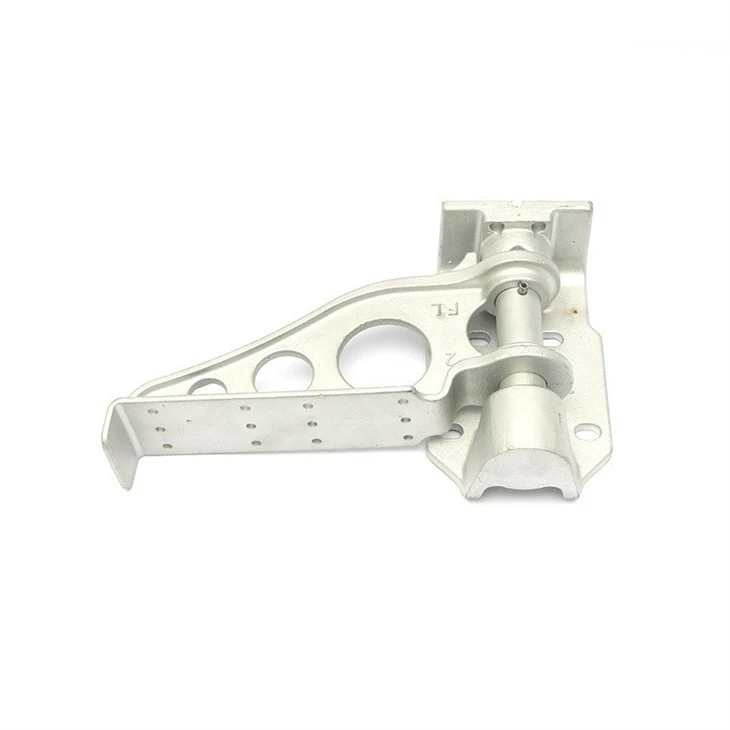

Heavy-duty Water Glass Casting Balancing Bracket
Key Technical Features
Material Excellence & Dimensional Accuracy
Manufactured from carbon steel, alloy steel, or stainless steel (AISI 304/316), our balancing brackets provide tensile strengths up to 850 MPa. The water glass casting process enables complex geometries with minimal draft angles, wall thicknesses as low as 3mm, and superior surface finishes (Ra 6.3-12.5μm). All mounting surfaces are precision-machined with hole tolerances of H7/h8 standards for bolted connections.
Load-Bearing Performance
Engineered for heavy-duty operations, these brackets support static loads exceeding 15,000 kg while maintaining structural integrity under dynamic stress. Finite element analysis (FEA) validates each design for fatigue resistance up to 10⁷ load cycles, making them ideal for high-vibration environments.
Industrial Applications
|
Construction Equipment: |
Crane counterweight systems, excavator stabilization frames |
|
Mining Machinery: |
Crusher support structures, conveyor tensioning systems |
|
Agricultural Machinery: |
Harvester component mounting, plow frame reinforcement |
|
Material Handling: |
Forklift mast guides, industrial robot bases |
|
Energy Sector: |
Wind turbine nacelle supports, power transmission fixtures |
Why Choose Our Ningbo Facility?
|
Integrated Production: |
In-house water glass casting, heat treatment (annealing/quenching), and 5-axis CNC machining eliminate supply chain delays |
|
Cost Efficiency: |
Direct factory pricing with no intermediary markups, MOQ starting at 100 pieces Rapid Prototyping: 3D-printed wax patterns deliver samples within 15 days |
|
Rapid Prototyping: |
3D-printed wax patterns deliver samples within 15 days |
|
Flexible Customization: |
We reverse-engineer from your drawings or physical samples, supporting OEM/ODM branding |
|
Quality Assurance: |
100% dimensional inspection via CMM, material certification (EN 10204 Type 3.1), and X-ray testing for internal defects |
Quality Control Standards
Our Heavy-duty Water Glass Casting Balancing Bracket complies with ASTM A148, DIN 1681, and GB/T 11352 standards. Each batch undergoes:
- Spectrographic chemical analysis
- Ultrasonic thickness gauging
- Magnetic particle surface inspection
- Salt spray testing (240+ hours for corrosion resistance)
- Load testing verification
Full traceability from raw material to finished part ensures consistent quality across production runs.
Technical Specifications
|
Parameter |
Standard Options |
|
Weight Range |
0.5–50 kg |
|
Dimensions |
Up to 600mm x 400mm x 300mm |
|
Tolerance |
±0.2mm (machined), ±0.5mm (as-cast) |
|
Surface Treatment |
Painting, galvanizing, powder coating |
|
Machining |
Drilling, tapping, milling, turning |
|
Lead Time |
4-6 weeks production |
Custom Engineering Support
Our bilingual engineering team provides free DFM analysis, optimizing your Heavy-duty Water Glass Casting Balancing Bracket designs for castability and cost reduction. We assist with material selection, stress analysis, and assembly integration, ensuring your components meet exact performance specifications.
Located in Ningbo's advanced manufacturing zone, we offer FOB Shanghai/Ningbo shipping with flexible Incoterms and comprehensive export documentation support.
Contact us today for technical drawings, material certificates, and competitive quotations tailored to your project requirements.
